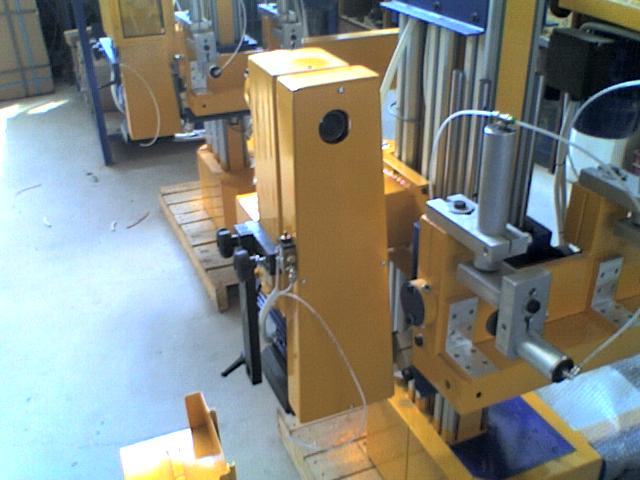

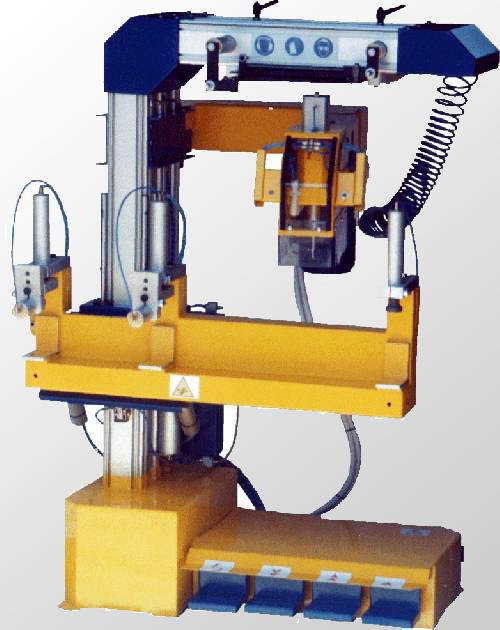

A3 copier for aluminium profiles




    Description:

  • The A3 copier is used for opening key lock holes in aluminium profiles.
  • The design is an abstract of the demands of manufacturers and in accordance with European CE safety regulations.
  • The strength of the A3 copier and the speed with which it is able to cut are comparable with the twin-spindle market competitors.
  • However, the A3 is easier to operate, quieter and much cheaper comparing to those machines.

    Key advantages:

  • The profile is clamped once to be fully processed.
  • Pneumatic rotating work table.
  • Hydropneumatic cutting procedure.

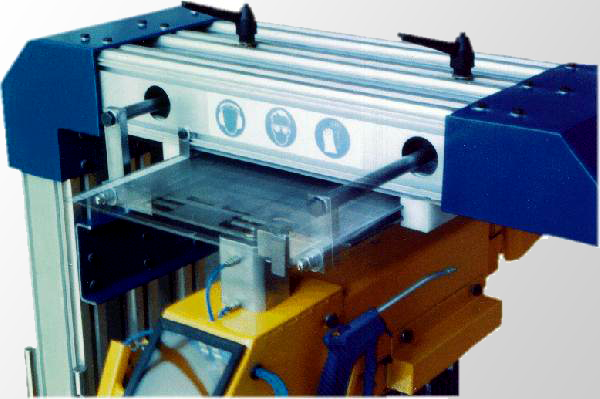

  • Two retractable pneumatic operated copying templates.

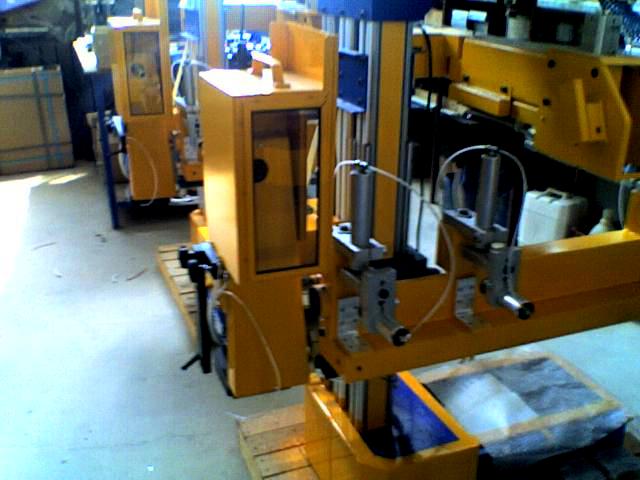

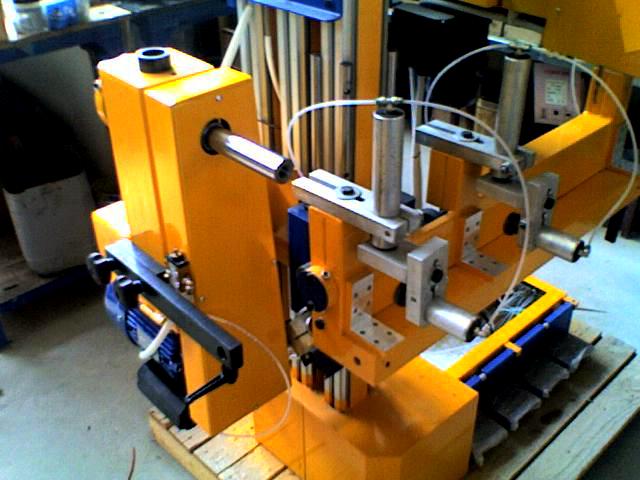

  • Five pneumatic vices.

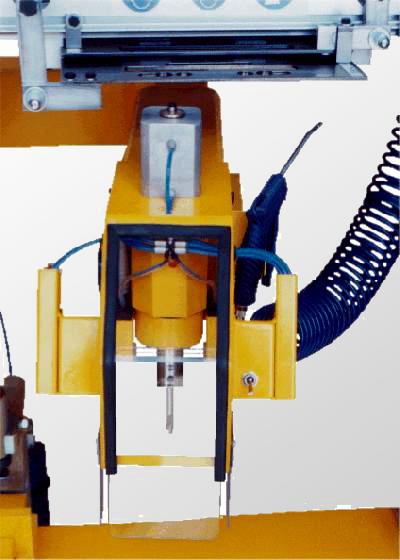

  • Pneumatic copying pin.
  • Ample visibility over the work space.
  • High pressure tank for the coolant to avoid fumes.

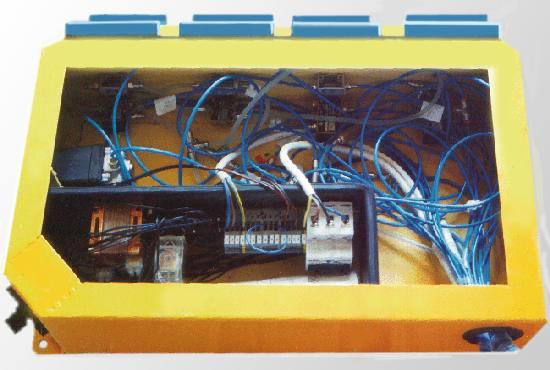

  • Fully pneumatic control - No electric buttons or switches are present.
  • Pneumatic interlocks to ensure the safety of the machine operator.
  • Belt driven milling shafts.
  • With the addition of an optional head, it can also operate as an end milling machine.

    Technical specifications:
    Motor 220V/0.5Hp
    Bit rotating speed 8000rpm
    Bit dimensions Φ8xΦ8x100mm
    Overall dimensions 100x70x140cm
    Weight 360kg
