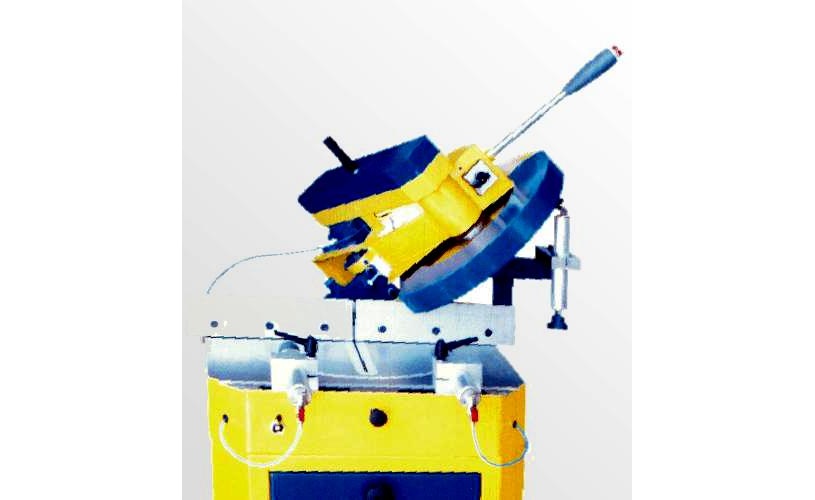

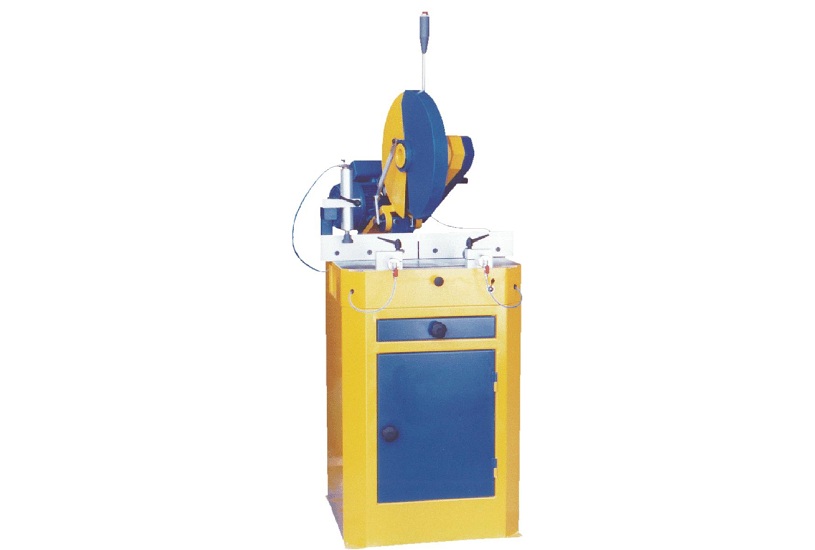

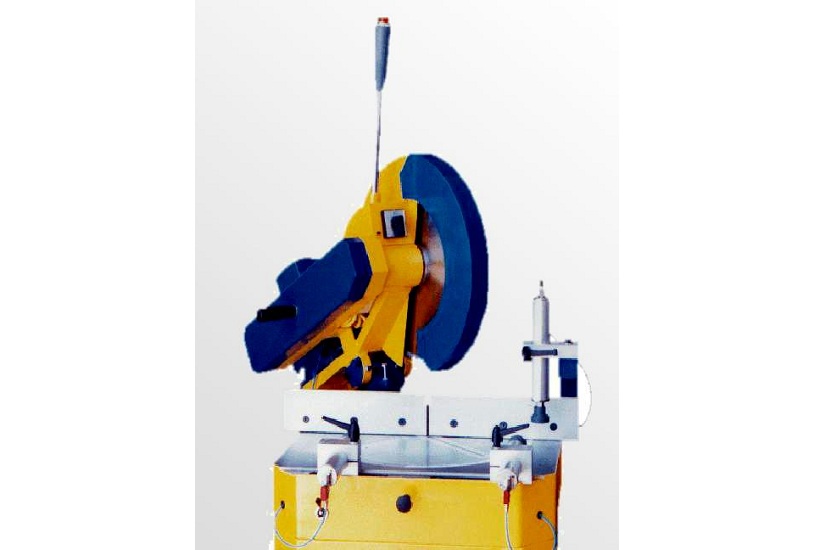

Dropsaw A420




    Product overview:

  • The dropsaw A420 has two horizontal and one vertical pneumatic vices, for locking the profile in position.
  • The disk is cooled using a spray coolant system.
  • The dropsaw has been carefully designed so as to ensure excellent vertical and mitre cuts.
  • Alternatively, the dropsaw can be supplied without the machine base.
Description A420 A421
Maximum diameter of blade Φ420mm Φ420mm
Diameter of blade axis Φ32mm Φ32mm
Motor 220V/2Hp 220V/2Hp
Blade speed 2800rpm 2800rpm
Cutting capacity at 90°(vertical cut) 195x120mm 195x120mm
Cutting capacity at 45° (pivot left or right) 140x120mm 140x120mm
Cutting capacity with 45° tilt (left only) 195x90mm 195x90mm
Manual pivot V
Automatic pivot V
Power supply 220V/16A 220V/16A
Air supply 6bar, 50lt/h 6bar, 150lt/h
Overall dimensions 65x90x90cm 65x90x90cm
Weight 130kg 130kg
