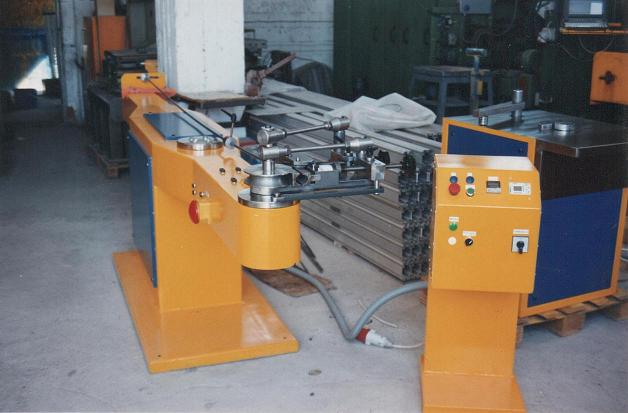

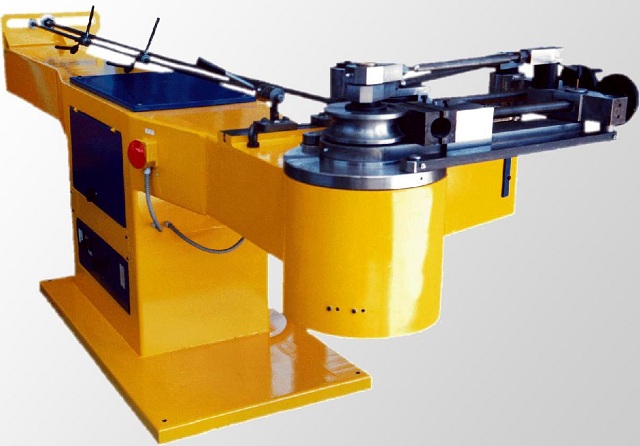

Benders




    The automated bender can be used to make curves in materials to be shaped for light fittings, iron furniture, exhausts, gas boilers, etc.

    Options:

  • Hydraulic drive

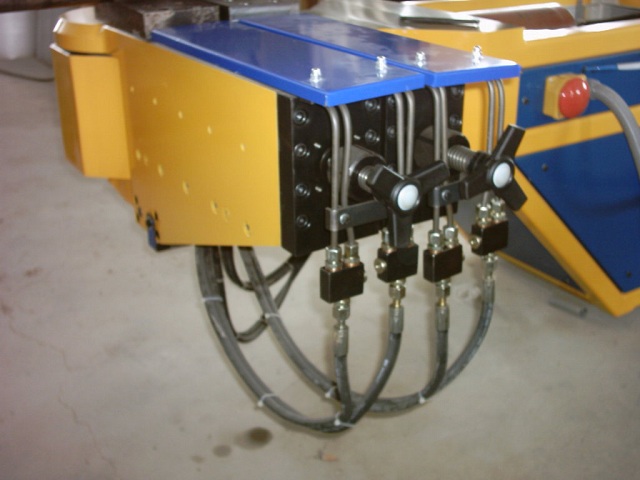

  • Hydraulic or mechanic clamping

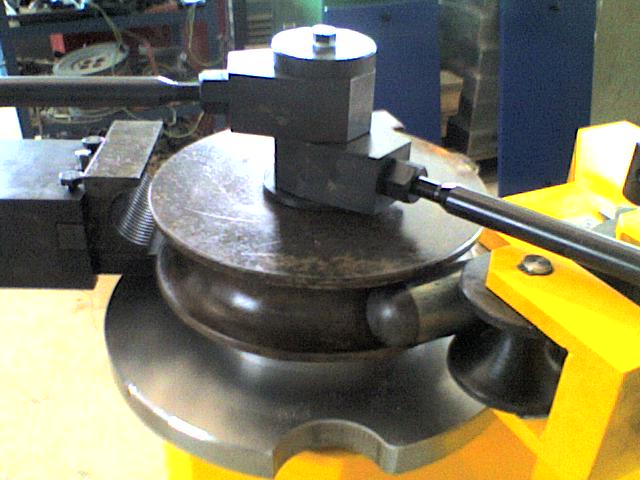

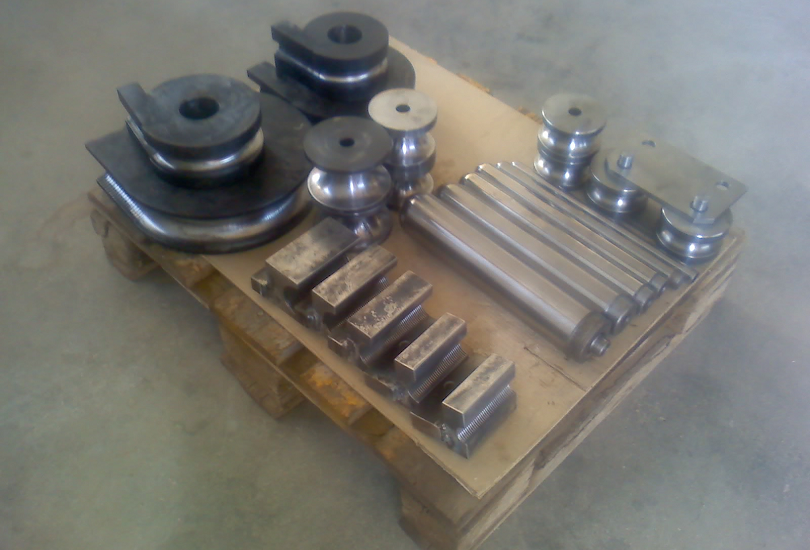

  • Simple or segmented mandrel
  • Mandrel extractor
  • Pipe feeder
  • Mechanical or electronic stop
  • Unlimited bending angles and recipes

Technical specifications
K32 K48 K63
Motor 380V/1.5Hp 380V/4Hp 380V/5Hp
Max. pipe diameter Φ32mm Φ48mm Φ63mm
Max. bending radius 150mm 200mm 250mm
Overall dimensions 320 x 91 x 100cm 390 x 100 x 120cm 400 x 120 x 120cm
Weight 300kg 600kg 900kg
